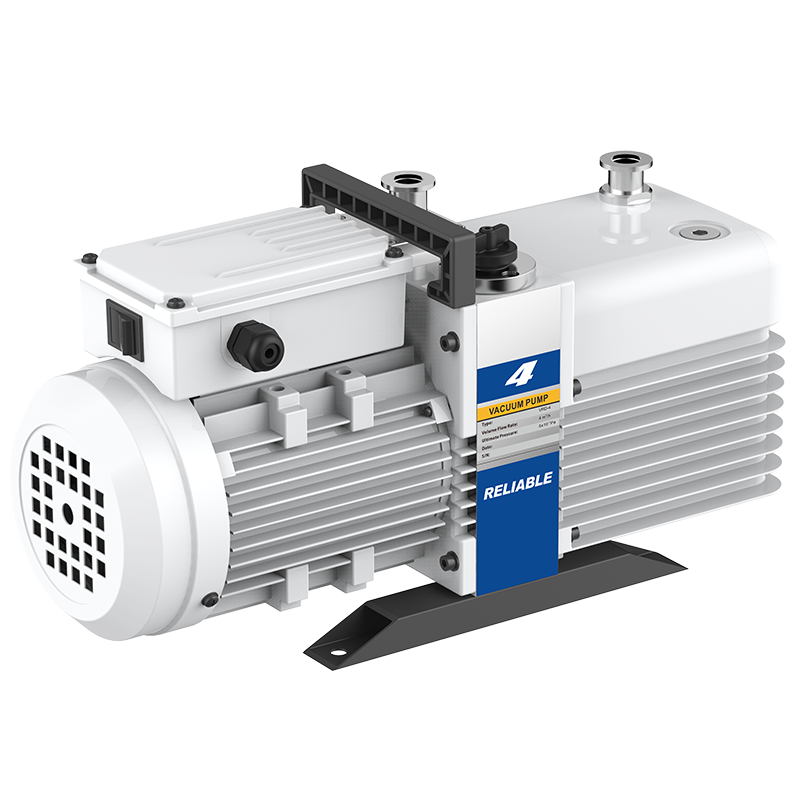

VRD-4 Dual-stage Rotary Vane Vacuum Pump
Product Detail
The VRD Series Two-Stage Rotary Vane Vacuum Pump is a high-performance, oil-sealed vacuum pump designed for industrial and laboratory applications requiring deep, stable vacuum. Built with a robust two-stage rotary vane design, these pumps deliver high pumping speeds (4–24 m³/h) and ultimate vacuum down to 5×10⁻² Pa, making them ideal for demanding tasks like freeze drying, degassing, and high-vacuum processing.
Product Features
✅ Two-Stage Rotary Vane Design
Delivers high vacuum performance with ultimate pressures down to 5×10⁻² Pa, suitable for demanding applications requiring deep vacuum.
✅ Forced Lubrication System
Built-in gear pump ensures stable oil supply even under high suction pressure, reducing wear and extending pump life.
✅ Air-Cooled Heat Dissipation
Large air outlets and efficient cooling eliminate the need for external water tanks, reducing installation and maintenance costs.

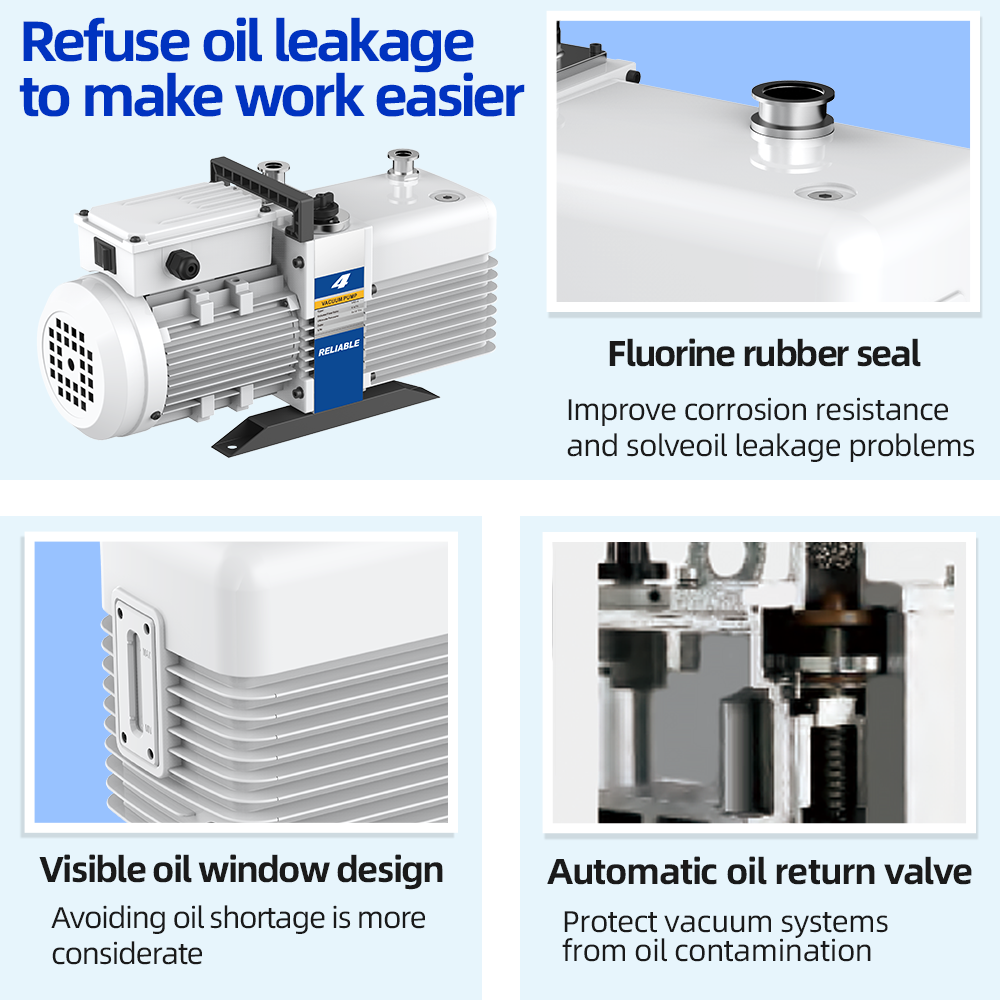

✅ Anti-Oil Return & Leakage Protection
Fluorine rubber seals and automatic anti-oil return valves prevent oil leakage and contamination, even after shutdown.
✅ Multi-Stage Gas Ballast Control
Adjustable gas ballast allows handling of condensable vapors, expanding compatibility with different process conditions.
✅ Low Noise & Continuous Operation
Designed for quiet operation (≤52–58 dB) and long-lasting performance, suitable for 24/7 industrial use.
✅ IP44 Protection Grade
Rugged construction protects against dust and moisture, ensuring reliable operation in various environments.

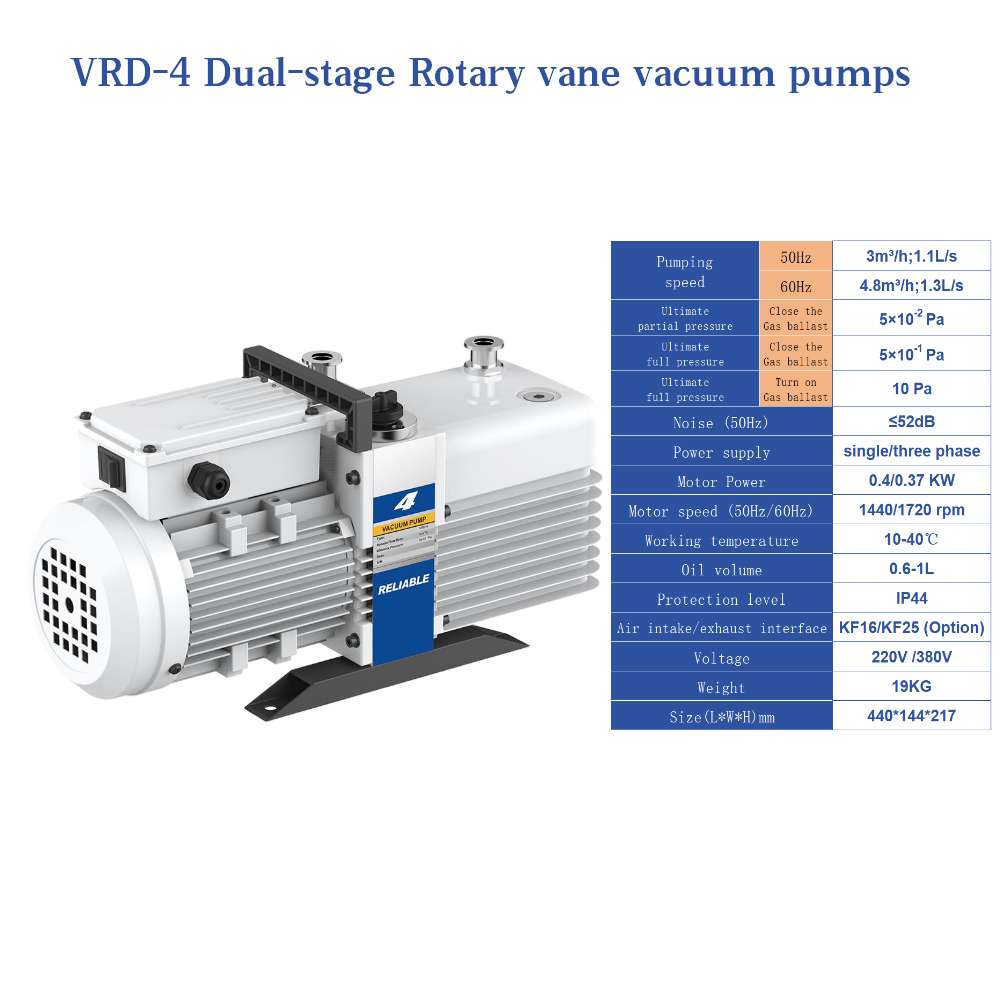

Product Specifications
| Parameter | VRD-4 | VRD-8 | VRD-16 | VRD-24 |
|---|---|---|---|---|
| Pumping Speed (50/60Hz) | 4/4.8 m³/h | 8/9.6 m³/h | 16/19.2 m³/h | 24/28.8 m³/h |
| Limit Partial Pressure (Gas Ballast Closed) | 5×10⁻² Pa | 5×10⁻² Pa | 4×10⁻² Pa | 4×10⁻² Pa |
| Extreme Full Pressure (Gas Ballast Off) | 5×10⁻¹ Pa | 5×10⁻¹ Pa | 4×10⁻¹ Pa | 4×10⁻¹ Pa |
| Extreme Full Pressure (Gas Ballast Open) | 10 Pa | 10 Pa | 8×10⁻¹ Pa | 8×10⁻¹ Pa |
| Power Supply | Single/Three-phase | Single/Three-phase | Single/Three-phase | Single/Three-phase |
| Power | 0.4/0.37 kW | 0.4/0.37 kW | 0.55 kW | 0.75 kW |
| Protection Grade | IP44 | IP44 | IP44 | IP44 |
| Air Intake/Exhaust Interface | KF16/25 | KF16/25 | KF25 | KF25/40 |
| Oil Quantity | 0.6–1.0 L | 0.6–1.0 L | 0.9–1.5 L | 1.3–2.0 L |
| Motor Speed (50/60Hz) | 1440/1720 rpm | 1440/1720 rpm | 1440/1720 rpm | 1440/1720 rpm |
| Ambient Temperature | 10–40℃ | 10–40℃ | 10–40℃ | 10–40℃ |
| Noise (50Hz) | ≤52 dB | ≤52 dB | ≤58 dB | ≤58 dB |
| Weight | 19 kg | 21 kg | 30 kg | 35 kg |
| Dimensions (L×W×H) | 440×144×217 mm | 440×144×217 mm | 530×188×272 mm | 567×188×272 mm |
Product Applications
The VRD Series Rotary Vane Vacuum Pumps are widely used in industries requiring reliable high-vacuum performance:
Refrigeration & HVAC: Evacuation and charging of refrigeration systems
Laboratory & Research: Freeze drying, degassing, and vacuum experiments
Medical Industry: Medical equipment, sterilization, and laboratory use
Electronics Manufacturing: Semiconductor processing, vacuum coating, and degassing
Food Industry: Vacuum packaging, freeze drying, and processing
Automotive & Power Industry: Leak testing, vacuum systems, and component processing
General Industrial Use: Degassing, forming, and vacuum holding applications
